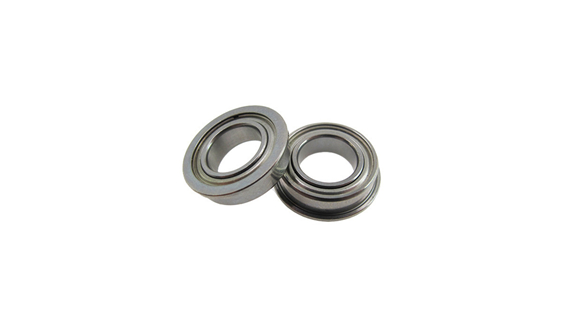

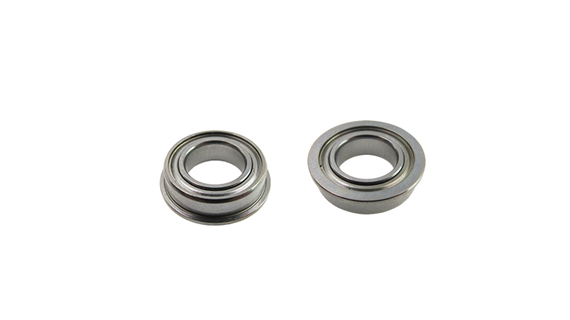

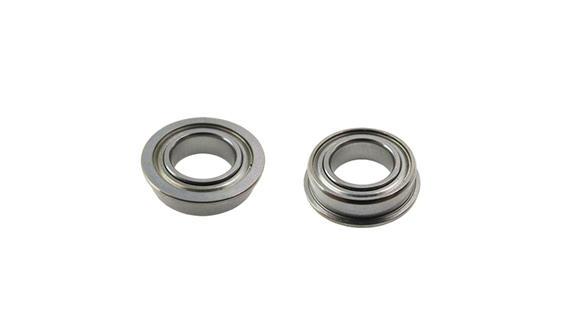

MF148zz MF148 MF148-2RS Deep Groove Ball Bearing




Bearing No.	Seal Type	Bore Dia	Outer Dia	Width	Flange Outer Dia	Flange Thickness	Dynamic Radial Load	Static Radial Load	Max Speed (X1000 rpm)
MF41x	Open	1.2 mm	4 mm	1.8 mm	4.8 mm	0.4 mm	95.000 N	26.000 N	110
MF52	Open	2 mm	5 mm	2 mm	6.2 mm	0.6 mm	144.000 N	40.000 N	85
MF52 2rs	Sealed	2 mm	5 mm	2.5 mm	6.2 mm	0.6 mm	144.000 N	40.000 N	85
MF52zz	Shielded	2 mm	5 mm	2.5 mm	6.2 mm	0.6 mm	144.000 N	40.000 N	85
MF62	Open	2 mm	6 mm	2.5 mm	7.2 mm	0.6 mm	281.000 N	79.000 N	75
MF62 2rs	Sealed	2 mm	6 mm	2.5 mm	7.2 mm	0.6 mm	281.000 N	79.000 N	75
MF62zz	Shielded	2 mm	6 mm	2.5 mm	7.2 mm	0.6 mm	281.000 N	79.000 N	75
MF72	Open	2 mm	7 mm	2.5 mm	8.2 mm	0.6 mm	328.000 N	103.000 N	63
MF72 2rs	Sealed	2 mm	7 mm	3 mm	8.2 mm	0.6 mm	328.000 N	103.000 N	63
MF72zz	Shielded	2 mm	7 mm	3 mm	8.2 mm	0.6 mm	328.000 N	103.000 N	63
MF82x	Open	2.5 mm	8 mm	2.5 mm	9.2 mm	0.6 mm	180.000 N	67.000 N	71
MF82x 2rs	Sealed	2.5 mm	8 mm	2.5 mm	9.2mm	0.6 mm	180.000 N	67.000 N	71
MF82xzz	Shielded	2.5 mm	8 mm	2.5 mm	9.2 mm	0.6 mm	180.000 N	67.000 N	71
MF63	Open	3 mm	6 mm	2 mm	7.2 mm	0.6 mm	178.000 N	59.000 N	71
MF63 2rs	Sealed	3 mm	6 mm	2.5 mm	7.2mm	0.6 mm	178.000 N	59.000 N	71
MF63zz	Shielded	3 mm	6 mm	2.5 mm	7.2 mm	0.6 mm	178.000 N	59.000 N	71
MF83	Open	3 mm	8 mm	2.5 mm	9.2 mm	0.6 mm	336.000 N	113.000 N	60
MF832rs	Sealed	3 mm	8 mm	3 mm	9.2 mm	0.6 mm	336.000 N	113.000 N	60
MF83zz	Shielded	3 mm	8 mm	3 mm	9.2 mm	0.6 mm	336.000 N	113.000N	60
MF93	Open	3 mm	9 mm	2.5 mm	10.2 mm	0.6 mm	485.000 N	151.000 N	56
MF93 2rs	Sealed	3 mm	9 mm	4mm	10.6 mm	0.8 mm	485.000 N	151.000N	56
MF93zz	Shielded	3 mm	9 mm	4 mm	10.6 mm	0.8 mm	485.000 N	151.000 N	56
MF74	Open	4 mm	7 mm	2 mm	8.2 mm	0.6 mm	264.000N	92.000 N	60
MF74 2rs	Sealed	4 mm	7 mm	2.5mm	8.2 mm	0.6 mm	217.000 N	86.000 N	60
MF74zz	Shielded	4 mm	7 mm	2.5 mm	8.2 mm	0.6 mm	217.000N	86.000 N	60
MF84	Open	4 mm	8 mm	2 mm	9.2 mm	0.6 mm	336.000 N	113.000 N	56
MF84 2rs	Sealed	4 mm	8 mm	3 mm	9.2 mm	0.6 mm	336.000 N	113.000 N	56
MF84zz	Shielded	4 mm	8 mm	3 mm	9.2 mm	0.6 mm	336.000 N	113.000 N	56
MF104	Open	4 mm	10 mm	3 mm	11.2 mm	0.6 mm	604.000 N	218.000 N	48
MF104 2rs	Sealed	4 mm	10 mm	4 mm	11.6 mm	0.8 mm	604.000 N	218.000 N	48
MF104zz	Shielded	4 mm	10 mm	4 mm	11.6 mm	0.8 mm	604.000 N	218.000 N	48
MF85	Open	5 mm	8 mm	2 mm	9.2 mm	0.6 mm	262.000 N	96.000 N	53
MF85 2rs	Sealed	5 mm	8 mm	2.5 mm	9.2 mm	0.6 mm	185.000 N	72.000 N	53
MF85zz	Shielded	5 mm	8 mm	2.5 mm	9.2 mm	0.6 mm	185.000 N	72.000 N	53
MF95	Open	5 mm	9 mm	2.5mm	10.2 mm	0.6 mm	366.000 N	135.000 N	50
MF95 2rs	Sealed	5 mm	9 mm	3 mm	10.2 mm	0.6 mm	366.000 N	135.000 N	50
MF95zz	Shielded	5 mm	9 mm	3 mm	10.2 mm	0.6 mm	366.000 N	135.000 N	50
MF105	Open	5 mm	10mm	3 mm	11.2 mm	0.6 mm	366.000 N	135.000 N	50
MF105 2rs	Sealed	5 mm	10 mm	4 mm	11.6 mm	0.8 mm	366.000 N	135.000 N	50
MF105zz	Shielded	5 mm	10 mm	4 mm	11.6 mm	0.8 mm	366.000 N	135.000 N	50
MF115 2rs	Sealed	5 mm	11 mm	4 mm	12.6 mm	0.8 mm	609.000 N	226.000 N	45
MF115zz	Shielded	5 mm	11mm	4 mm	12.6 mm	0.8 mm	609.000 N	226.000 N	45
MF115	Open	5 mm	11mm	4 mm	12.6 mm	0.8 mm	609.000 N	226.000 N	45
MF106	Open	6 mm	10 mm	2.5 mm	11.2 mm	0.6 mm	422.000 N	174.000 N	45
MF106 2rs	Sealed	6 mm	10 mm	3 mm	11.2 mm	0.6 mm	422.000 N	174.000 N	45
MF106zz	Shielded	6 mm	10 mm	3 mm	11.2 mm	0.6 mm	422.000 N	174.000 N	45
MF126	Open	6 mm	12 mm	3 mm	13.2 mm	0.6 mm	609.000 N	236.000 N	43
MF126 2rs	Sealed	6 mm	12 mm	4 mm	13.6 mm	0.8 mm	609.000 N	236.000 N	43
MF126zz	Shielded	6 mm	12 mm	4 mm	13.6 mm	0.8 mm	609.000 N	236.000 N	43
MF117	Open	7 mm	11 mm	2.5 mm	12.2 mm	0.6 mm	387.000 N	162.000 N	43
MF117 2rs	Sealed	7 mm	11mm	3 mm	12.2mm	0.6mm	387.000 N	162.000 N	43
MF117zz	Shielded	7 mm	11mm	3 mm	12.2 mm	0.6 mm	387.000 N	162.000 N	43
MF137	Open	7 mm	13 mm	3 mm	14.2 mm	0.6 mm	460.000 N	221.000 N	40
MF137 2rs	Sealed	7 mm	13 mm	4 mm	14.6 mm	0.8 mm	460.000 N	221.000 N	40
MF137zz	Shielded	7 mm	13 mm	4 mm	14.6 mm	0.8 mm	460.000 N	221.000 N	40
MF128	Open	8 mm	12 mm	2.5 mm	13.2 mm	0.6 mm	462.000 N	219.000 N	40
MF128 2rs	Sealed	8 mm	12 mm	3.5 mm	13.6 mm	0.8 mm	462.000 N	219.000 N	40
MF128zz	Shielded	8 mm	12 mm	3.5 mm	13.6 mm	0.8 mm	462.000 N	219.000 N	40
MF148	Open	8 mm	14 mm	3.5 mm	15.6 mm	0.8 mm	695.000 N	309.000 N	38
MF148 2rs	Sealed	8 mm	14 mm	4 mm	15.6 mm	0.8 mm	695.000 N	309.000 N	38
MF148zz	Shielded	8 mm	14 mm	4 mm	15.6 mm	0.8 mm	695.000 N	309.000 N	38
